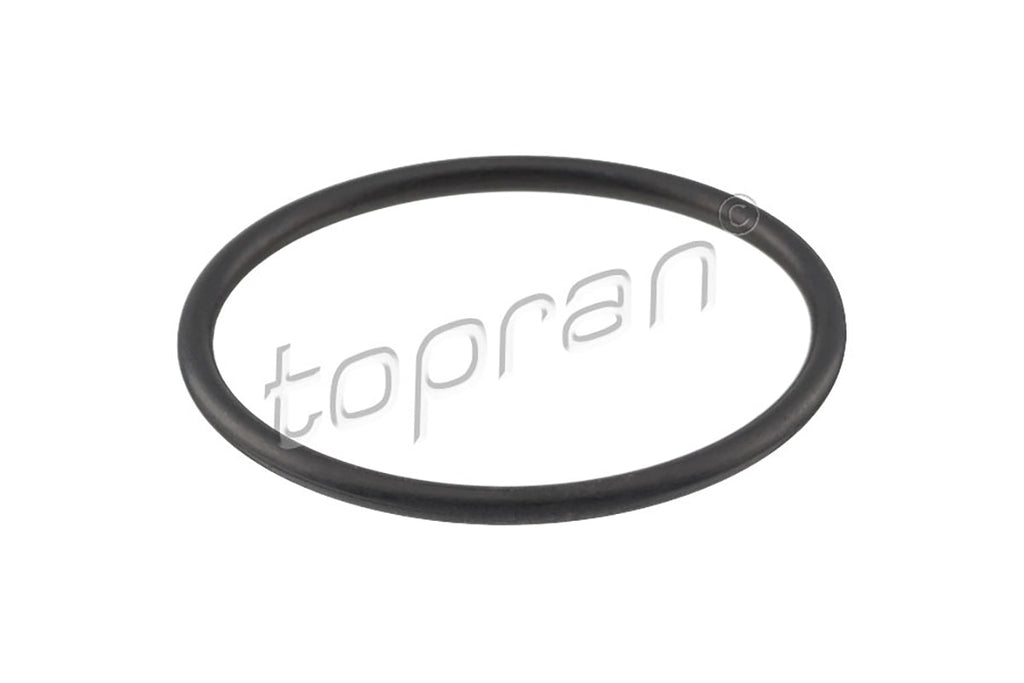

Audi VW Thermostat Gasket

Name: Audi VW Thermostat Gasket
Brand: topran
SKU: 06J121119B
Price: 13.0 AUD
Availability: InStock

topranSKU: 06J121119B

Price:

$13.00

Shipping:

Calculate Shipping

Stock:

In Stock

Quantity:

Will this part fit?

Click & Collect

In stock at Rosebud, VIC 3939
Usually ready in 4 hours

This gasket provides a tight seal around the thermostat, preventing coolant loss and supporting efficient engine cooling.

Specifications

Material	EPDM(Ethylene Propylene Diene Monomer (M-class) rubber)
Shape	O-Ring
Inner Diameter	48.7 mm
Outer Diameter	54.7 mm
Thickness	3 mm

Part Numbers

Audi, VW OE Numbers	06J121119B, 06J121119A
topran Number	113 303
EAN	4063926133876

Additional Information

Brand	topran
Quality	Aftermarket + topran parts are quality inspected at HANS PRIES GMBH & CO. KG in Germany in accordance with DIN ISO 9001:2015
Origin	Made in Germany

Fitment

Audi A3 8P1 (2003-2012) 1.8L 118kW | TFSI ! Fitment Restriction: Engine Code: CDAA

Audi A3 8P1 (2003-2012) 2.0L 147kW | TFSI ! Fitment Restriction: Engine Code: CCZA

Audi A3 8P1 (2003-2012) 2.0L 147kW | TFSI ! Fitment Restriction: Engine Code: CCTA, Engine Code: CCZA

Audi A3 8P7 (2008-2013) 1.8L 118kW | TFSI ! Fitment Restriction: Engine Code: CDAA

Audi A3 8P7 (2008-2013) 2.0L 147kW | TFSI ! Fitment Restriction: Engine Code: CCZA

Audi A3 8PA (2004-2013) 1.8L 118kW | TFSI ! Fitment Restriction: Engine Code: CDAA

Audi A3 8PA (2004-2013) 2.0L 147kW | TFSI ! Fitment Restriction: Engine Code: CCZA

Audi A4 B8, 8K2 (2007-2015) 1.8L 118kW | TFSI ! Fitment Restriction: Engine Code: CDHB, Engine Code: CABB

Audi A4 B8, 8K2 (2007-2015) 2.0L 132kW | TFSI ! Fitment Restriction: Engine Code: CFKA, Engine Code: CAEA, Engine Code: CDNB

Audi A4 B8, 8K2 (2007-2015) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CPMA, Engine Code: CAEB, Engine Code: CDNC

Audi A4 B8, 8K5 (2007-2015) 1.8L 118kW | TFSI ! Fitment Restriction: Engine Code: CDHB, Engine Code: CABB

Audi A4 B8, 8K5 (2007-2015) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CAEB, Engine Code: CDNC

Audi A5 8T3 (2007-2017) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CDNC

Audi A5 8T3 (2007-2017) 2.0L 132kW | TFSI ! Fitment Restriction: Engine Code: CDNB

Audi A5 8T3 (2007-2017) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CPMA, Engine Code: CAEB, Engine Code: CDNC

Audi A5 8F7 (2009-2017) 1.8L 118kW | TFSI ! Fitment Restriction: Engine Code: CDHB

Audi A5 8F7 (2009-2017) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CAEB, Engine Code: CDNC

Audi A5 8F7 (2009-2017) 2.0L 132kW | TFSI ! Fitment Restriction: Engine Code: CAEA, Engine Code: CDNB

Audi A5 8F7 (2009-2017) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CPMA, Engine Code: CAEB

Audi A5 8TA (2009-2017) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CDNC

Audi A5 8TA (2009-2017) 2.0L 132kW | TFSI ! Fitment Restriction: Engine Code: CDNB

Audi A6 C7, 4GC, 4G2 (2010-2018) 2.0L 132kW | TFSI ! Fitment Restriction: Engine Code: CDNB

Audi A6 C7, 4GD, 4G5 (2011-2018) 2.0L 132kW | TFSI ! Fitment Restriction: Engine Code: CDNB

Audi Q5 8RB (2008-2019) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CAEB, Engine Code: CDNC

Audi TT 8J3 (2006-2014) 1.8L 118kW | TFSI ! Fitment Restriction: Engine Code: CDAA

Audi TT 8J3 (2006-2014) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CESA

Audi TT 8J3 (2006-2014) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CETA, Engine Code: CESA

Audi TT 8J3 (2006-2014) 2.0L 147kW | TFSI ! Fitment Restriction: Engine Code: CCZA

Audi TT 8J9 (2007-2014) 1.8L 118kW | TFSI ! Fitment Restriction: Engine Code: CDAA

Audi TT 8J9 (2007-2014) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CESA

Audi TT 8J9 (2007-2014) 2.0L 155kW | TFSI ! Fitment Restriction: Engine Code: CETA, Engine Code: CESA

Volkswagen Transporter SFD, SFE, SFL, SFZ, SJD, SJE, SJL, SJZ (2015-2021) 2.0L 110kW | TSI ! Fitment Restriction: Engine Code: CJKB

Volkswagen Tiguan 5N (2007-2019) 2.0L 155kW | TSI ! Fitment Restriction: Engine Code: CCZB

Volkswagen Tiguan 5N (2007-2019) 2.0L 132kW | TSI ! Fitment Restriction: Engine Code: CCZD

Volkswagen Tiguan 5N (2007-2019) 2.0L 147kW | TFSI ! Fitment Restriction: Engine Code: CCZA, Engine Code: CCTA, Engine Code: CAWB

Volkswagen Tiguan 5N (2007-2019) 2.0L 125kW | TFSI ! Fitment Restriction: Engine Code: CCZC, Engine Code: CCTB, Engine Code: CAWA

Volkswagen Passat 3C2 (2005-2010) 2.0L 125kW | FSI ! Fitment Restriction: Engine Code: CCTB

Volkswagen MultiVan 7HN, 7HM, 7HF, 7EN, 7EM, 7EF (2003-2015) 2.0L 150kW | TSI ! Fitment Restriction: Engine Code: CJKA

Volkswagen Jetta 162, 163 (2010-2021) 2.0L 147kW | TSI ! Fitment Restriction: Engine Code: CCZA

Volkswagen Golf MKVI, 5K1 (2008-2013) 2.0L 155kW | GTI ! Fitment Restriction: Engine Code: CCZB

Volkswagen EOS 1F7, 1F8 (2006-2015) 2.0L 155kW | TSI ! Fitment Restriction: Engine Code: CCZB
