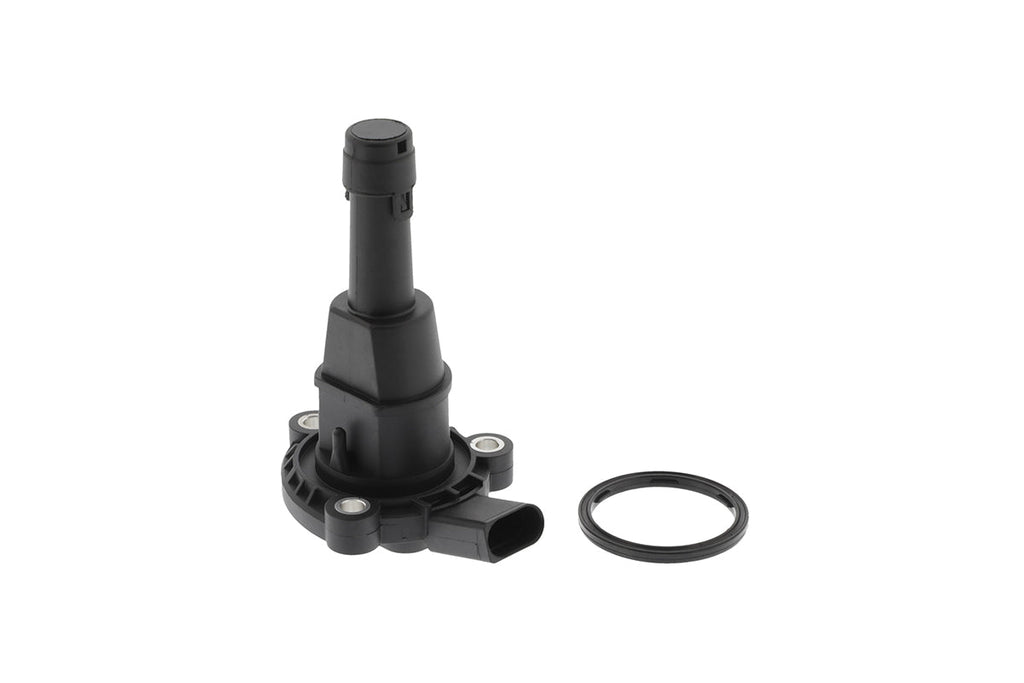

Audi VW Oil Level Sensor

Name: Audi VW Oil Level Sensor
Brand: topran
SKU: 03F907660E
Price: 154.0 AUD
Availability: OutOfStock

Restock June

topranSKU: 03F907660E

$154.00

FREE SHIPPING Ships 1 day after restocking

Will this part fit?

The oil level sensor keeps an eye on how much oil is in your car's engine to avoid damage caused by lack of lubrication. If you have a low oil light on your dash but the dipstick reads correctly the oil level sensor may be faulty.

Specifications

Fitting Position	Oil Sump
Number Of Plug-In Contacts	3 - pin connector
Connector Shape	D Shape
Note	With seal ring
Gasket Material	HNBR (hydrogenated nitrile butadiene rubber)
Number Of Mounting Bores	3
Housing Type	Synthetic Material Housing
Housing Colour	Black

Part Numbers

Audi, VW OE Numbers	03F907660E, 03F907660D, 03F907660C
topran Number	622 466
EAN	4063926392136

Additional Information

Brand	topran
Quality	Aftermarket + topran parts are quality inspected at HANS PRIES GMBH & CO. KG in Germany in accordance with DIN ISO 9001:2015
Origin	Made in China

Fitment

Audi A1 8XK, 8X1 (2010-2018) 1.8L 141kW | TFSI

Audi S1 8XK, 8X1 (2010-2018) 2.0L 170kW | S1

Audi A1 8XA, 8XF (2011-2018) 1.8L 141kW | TFSI

Audi S1 8XA, 8XF (2011-2018) 2.0L 170kW | S1

Audi A3 8VK, 8V1 (2012-2021) 1.8L 132kW | TFSI

Audi A3 8VK, 8V1 (2012-2021) 2.0L 140kW | TFSI

Audi S3 8VK, 8V1 (2012-2021) 2.0L 213kW | S3

Audi S3 8VK, 8V1 (2012-2021) 2.0L 210kW | S3

Audi S3 8VK, 8V1 (2012-2021) 2.0L 206kW | S3

Audi A3 8VS, 8VM (2013-2021) 1.8L 132kW | TFSI

Audi A3 8VS, 8VM (2013-2021) 1.8L 125kW | TFSI

Audi A3 8VS, 8VM (2013-2021) 2.0L 140kW | TFSI

Audi S3 8VS, 8VM (2013-2021) 2.0L 213kW | S3

Audi S3 8VS, 8VM (2013-2021) 2.0L 210kW | S3

Audi S3 8VS, 8VM (2013-2021) 2.0L 206kW | S3

Audi A3 8VF, 8VA (2012-2021) 1.8L 132kW | TFSI

Audi A3 8VF, 8VA (2012-2021) 2.0L 140kW | TFSI

Audi A3 8VF, 8VA (2012-2021) 2.0L 140kW | 40 TFSI

Audi S3 8VF, 8VA (2012-2021) 2.0L 213kW | S3

Audi S3 8VF, 8VA (2012-2021) 2.0L 210kW | S3

Audi S3 8VF, 8VA (2012-2021) 2.0L 206kW | S3

Audi A4 B8, 8K2 (2007-2015) 1.8L 125kW | TFSI

Audi A4 B8, 8K2 (2007-2015) 2.0L 165kW | TFSI

Audi A4 B8, 8K5 (2007-2015) 1.8L 125kW | TFSI

Audi A4 B8, 8K5 (2007-2015) 2.0L 165kW | TFSI

Audi A5 8T3 (2007-2017) 1.8L 130kW | TFSI

Audi A5 8T3 (2007-2017) 1.8L 125kW | TFSI

Audi A5 8T3 (2007-2017) 2.0L 169kW | TFSI

Audi A5 8T3 (2007-2017) 2.0L 165kW | TFSI

Audi A5 8F7 (2009-2017) 1.8L 130kW | TFSI

Audi A5 8F7 (2009-2017) 1.8L 125kW | TFSI

Audi A5 8F7 (2009-2017) 2.0L 169kW | TFSI

Audi A5 8F7 (2009-2017) 2.0L 165kW | TFSI

Audi A5 8TA (2009-2017) 1.8L 130kW | TFSI

Audi A5 8TA (2009-2017) 1.8L 125kW | TFSI

Audi A5 8TA (2009-2017) 2.0L 169kW | TFSI

Audi A5 8TA (2009-2017) 2.0L 165kW | TFSI

Audi A6 C7, 4GC, 4G2 (2010-2018) 1.8L 140kW | TFSI

Audi A6 C7, 4GC, 4G2 (2010-2018) 2.0L 185kW | TFSI

Audi A7 4GA, 4GF (2010-2018) 2.0L 185kW | TFSI

Audi S8 4H2, 4HL, 4H8, 4HC (2009-2018) 4.0L 382kW | S8 ! Fitment Restriction: Production date to: 16.09.2013

Audi Q2 GAB, GAG (2016-2021) 2.0L 140kW | TFSI

Audi Q2 GAB, GAG (2016-2021) 2.0L 140kW | 40 TFSI

Audi Q2 GAB, GAG (2016-2021) 2.0L 221kW | SQ2 TFSI

Audi Q3 8UG, 8UB (2011-2018) 2.0L 132kW | TFSI

Audi Q3 F3B (2018-) 2.0L 132kW | 40 TFSI quattro ! Fitment Restriction: Production date to: 05.02.2024

Audi Q5 8RB (2008-2019) 2.0L 165kW | TFSI

Audi TT FV3, FVP (2014-2021) 2.0L 169kW | TFSI

Audi TT FV3, FVP (2014-2021) 2.0L 210kW | TTS

Audi TT FV3, FVP (2014-2021) 2.0L 180kW | 45 TFSI

Audi TT FV9, FVR (2014-2021) 2.0L 169kW | TFSI

Audi TT FV9, FVR (2014-2021) 2.0L 210kW | TTS

Volkswagen Tiguan Allspace BW2 (2017-2021) 2.0L 162kW | TSI

Volkswagen Tiguan Allspace BW2 (2017-2021) 2.0L 132kW | TSI

Volkswagen Tiguan AD1, AX1 (2016-2021) 2.0L 162kW | TSI

Volkswagen Tiguan AD1, AX1 (2016-2021) 2.0L 132kW | TSI

Volkswagen T-ROC A11 (2017-2021) 2.0L 140kW | TSI

Volkswagen T-ROC A11 (2017-2021) 2.0L 221kW | R

Volkswagen Polo AW1, BZ1 (2017-2021) 2.0L 147kW | GTI

Volkswagen Polo 6R1, 6C1 (2009-2021) 1.8L 141kW | GTI

Volkswagen Passat 3G5(B8) (2014-2021) 2.0L 206kW | TSI

Volkswagen Passat 3G5(B8) (2014-2021) 2.0L 162kW | TSI

Volkswagen Passat 3G5(B8) (2014-2021) 2.0L 140kW | TSI

Volkswagen Passat 3G5(B8) (2014-2021) 1.8L 132kW | TSI

Volkswagen Passat 3G2(B8) (2014-2021) 2.0L 206kW | TSI

Volkswagen Passat 3G2(B8) (2014-2021) 2.0L 162kW | TSI

Volkswagen Passat 3G2(B8) (2014-2021) 2.0L 140kW | TSI

Volkswagen Passat 3G2(B8) (2014-2021) 1.8L 132kW | TSI

Volkswagen Jetta 162, 163 (2010-2021) 2.0L 155kW | TSI

Volkswagen Golf MKVIII, CD1, DA1 (2019-) 2.0L 180kW | GTI

Volkswagen Golf MKVII, BA5, BV5 (2013-2021) 2.0L 213kW | R

Volkswagen Golf MKVII, BA5, BV5 (2013-2021) 2.0L 206kW | R

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 213kW | R

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 206kW | R

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 213kW | GTI TCR

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 195kW | GTI Clubsport

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 180kW | GTI

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 169kW | GTI

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 162kW | GTI

Volkswagen Arteon 3H9 (2020-2024) 2.0L 140kW | TSi

Volkswagen Arteon 3H9 (2020-2024) 2.0L 206kW | TSI

Volkswagen Arteon 3H7, 3H8 (2017-2021) 2.0L 206kW | TSI

Volkswagen Arteon 3H7, 3H8 (2021-) 2.0L 140kW | TSI

Audi A1 8XK, 8X1 (2010-2018) 1.8L 141kW | TFSI

Audi S1 8XK, 8X1 (2010-2018) 2.0L 170kW | S1

Audi A1 8XA, 8XF (2011-2018) 1.8L 141kW | TFSI

Audi S1 8XA, 8XF (2011-2018) 2.0L 170kW | S1

Audi A3 8VK, 8V1 (2012-2021) 1.8L 132kW | TFSI

Audi A3 8VK, 8V1 (2012-2021) 2.0L 140kW | TFSI

Audi S3 8VK, 8V1 (2012-2021) 2.0L 213kW | S3

Audi S3 8VK, 8V1 (2012-2021) 2.0L 210kW | S3

Audi S3 8VK, 8V1 (2012-2021) 2.0L 206kW | S3

Audi A3 8VS, 8VM (2013-2021) 1.8L 132kW | TFSI

Audi A3 8VS, 8VM (2013-2021) 1.8L 125kW | TFSI

Audi A3 8VS, 8VM (2013-2021) 2.0L 140kW | TFSI

Audi S3 8VS, 8VM (2013-2021) 2.0L 213kW | S3

Audi S3 8VS, 8VM (2013-2021) 2.0L 210kW | S3

Audi S3 8VS, 8VM (2013-2021) 2.0L 206kW | S3

Audi A3 8VF, 8VA (2012-2021) 1.8L 132kW | TFSI

Audi A3 8VF, 8VA (2012-2021) 2.0L 140kW | TFSI

Audi A3 8VF, 8VA (2012-2021) 2.0L 140kW | 40 TFSI

Audi S3 8VF, 8VA (2012-2021) 2.0L 213kW | S3

Audi S3 8VF, 8VA (2012-2021) 2.0L 210kW | S3

Audi S3 8VF, 8VA (2012-2021) 2.0L 206kW | S3

Audi A4 B8, 8K2 (2007-2015) 1.8L 125kW | TFSI

Audi A4 B8, 8K2 (2007-2015) 2.0L 165kW | TFSI

Audi A4 B8, 8K5 (2007-2015) 1.8L 125kW | TFSI

Audi A4 B8, 8K5 (2007-2015) 2.0L 165kW | TFSI

Audi A5 8T3 (2007-2017) 1.8L 130kW | TFSI

Audi A5 8T3 (2007-2017) 1.8L 125kW | TFSI

Audi A5 8T3 (2007-2017) 2.0L 169kW | TFSI

Audi A5 8T3 (2007-2017) 2.0L 165kW | TFSI

Audi A5 8F7 (2009-2017) 1.8L 130kW | TFSI

Audi A5 8F7 (2009-2017) 1.8L 125kW | TFSI

Audi A5 8F7 (2009-2017) 2.0L 169kW | TFSI

Audi A5 8F7 (2009-2017) 2.0L 165kW | TFSI

Audi A5 8TA (2009-2017) 1.8L 130kW | TFSI

Audi A5 8TA (2009-2017) 1.8L 125kW | TFSI

Audi A5 8TA (2009-2017) 2.0L 169kW | TFSI

Audi A5 8TA (2009-2017) 2.0L 165kW | TFSI

Audi A6 C7, 4GC, 4G2 (2010-2018) 1.8L 140kW | TFSI

Audi A6 C7, 4GC, 4G2 (2010-2018) 2.0L 185kW | TFSI

Audi A7 4GA, 4GF (2010-2018) 2.0L 185kW | TFSI

Audi S8 4H2, 4HL, 4H8, 4HC (2009-2018) 4.0L 382kW | S8 ! Fitment Restriction: Production date to: 16.09.2013

Audi Q2 GAB, GAG (2016-2021) 2.0L 140kW | TFSI

Audi Q2 GAB, GAG (2016-2021) 2.0L 140kW | 40 TFSI

Audi Q2 GAB, GAG (2016-2021) 2.0L 221kW | SQ2 TFSI

Audi Q3 8UG, 8UB (2011-2018) 2.0L 132kW | TFSI

Audi Q3 F3B (2018-) 2.0L 132kW | 40 TFSI quattro ! Fitment Restriction: Production date to: 05.02.2024

Audi Q5 8RB (2008-2019) 2.0L 165kW | TFSI

Audi TT FV3, FVP (2014-2021) 2.0L 169kW | TFSI

Audi TT FV3, FVP (2014-2021) 2.0L 210kW | TTS

Audi TT FV3, FVP (2014-2021) 2.0L 180kW | 45 TFSI

Audi TT FV9, FVR (2014-2021) 2.0L 169kW | TFSI

Audi TT FV9, FVR (2014-2021) 2.0L 210kW | TTS

Volkswagen Tiguan Allspace BW2 (2017-2021) 2.0L 162kW | TSI

Volkswagen Tiguan Allspace BW2 (2017-2021) 2.0L 132kW | TSI

Volkswagen Tiguan AD1, AX1 (2016-2021) 2.0L 162kW | TSI

Volkswagen Tiguan AD1, AX1 (2016-2021) 2.0L 132kW | TSI

Volkswagen T-ROC A11 (2017-2021) 2.0L 140kW | TSI

Volkswagen T-ROC A11 (2017-2021) 2.0L 221kW | R

Volkswagen Polo AW1, BZ1 (2017-2021) 2.0L 147kW | GTI

Volkswagen Polo 6R1, 6C1 (2009-2021) 1.8L 141kW | GTI

Volkswagen Passat 3G5(B8) (2014-2021) 2.0L 206kW | TSI

Volkswagen Passat 3G5(B8) (2014-2021) 2.0L 162kW | TSI

Volkswagen Passat 3G5(B8) (2014-2021) 2.0L 140kW | TSI

Volkswagen Passat 3G5(B8) (2014-2021) 1.8L 132kW | TSI

Volkswagen Passat 3G2(B8) (2014-2021) 2.0L 206kW | TSI

Volkswagen Passat 3G2(B8) (2014-2021) 2.0L 162kW | TSI

Volkswagen Passat 3G2(B8) (2014-2021) 2.0L 140kW | TSI

Volkswagen Passat 3G2(B8) (2014-2021) 1.8L 132kW | TSI

Volkswagen Jetta 162, 163 (2010-2021) 2.0L 155kW | TSI

Volkswagen Golf MKVIII, CD1, DA1 (2019-) 2.0L 180kW | GTI

Volkswagen Golf MKVII, BA5, BV5 (2013-2021) 2.0L 213kW | R

Volkswagen Golf MKVII, BA5, BV5 (2013-2021) 2.0L 206kW | R

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 213kW | R

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 206kW | R

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 213kW | GTI TCR

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 195kW | GTI Clubsport

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 180kW | GTI

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 169kW | GTI

Volkswagen Golf MKVII, 5G1, BQ1, BE1, BE2 (2012-2021) 2.0L 162kW | GTI

Volkswagen Arteon 3H9 (2020-2024) 2.0L 140kW | TSi

Volkswagen Arteon 3H9 (2020-2024) 2.0L 206kW | TSI

Volkswagen Arteon 3H7, 3H8 (2017-2021) 2.0L 206kW | TSI

Volkswagen Arteon 3H7, 3H8 (2021-) 2.0L 140kW | TSI
