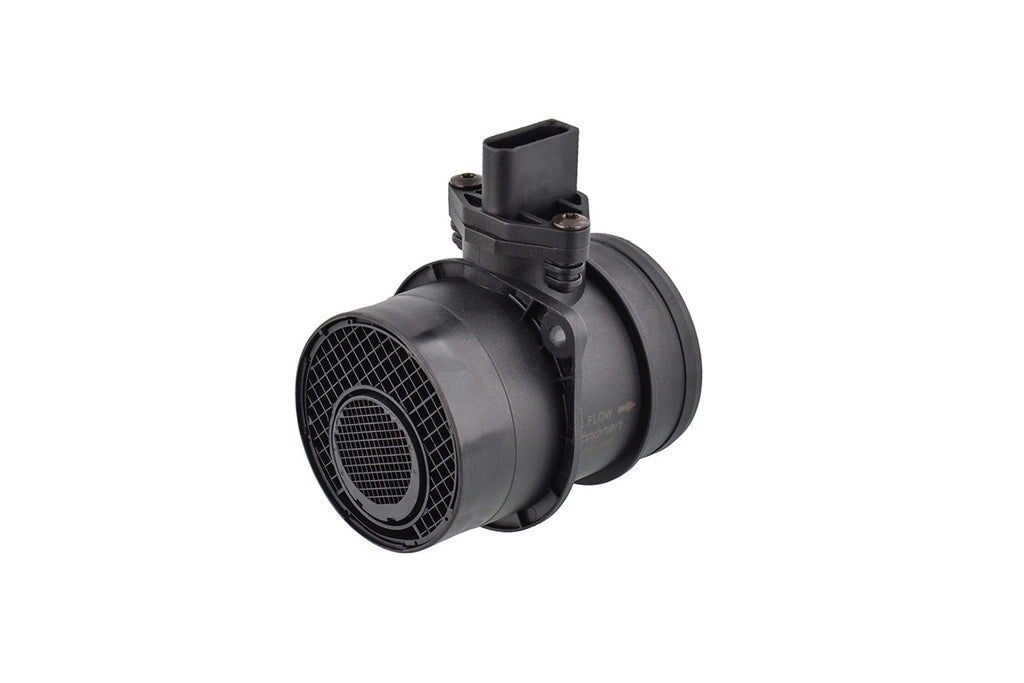

Audi VW Air Mass Sensor

Name: Audi VW Air Mass Sensor
Brand: topran
SKU: 074906461B
Price: 134.0 AUD
Availability: OutOfStock

Restock June

topranSKU: 074906461B

Price:

$134.00

Shipping:

FREE SHIPPING

Ships 1 day after restocking

Stock:

Sold Out

Will this part fit?

The air mass sensor, also known as the mass (air) flow sensor (MAF), is used to measure the intake air mass. Located in the air filter box, two temperature-dependent sensors measure the air temperature and the air flow rate. The signal is sent to the engine control unit (ECU) to calculate the correct fuel quantity required. Some common symptoms can be poor idle, complete loss of power or stalling, and the engine warning light on the instrument cluster illuminates.

Specifications

Housing Type	With housing
Number Of Plug-In Contacts	5 - pin connector
Housing Material	Plastic
Connector Shape	D Shape
Number Of Mounting Bores	2
Note	With integrated grille
Recommended Additional Repairs	Air Filter

Part Numbers

Audi, VW OE Numbers	074906461B, 074906461BX, 074906461BV, 1209109, 3M2112M529AA, MN191135, MN980445
topran Number	110 888
EAN	4063926177191

Additional Information

Brand	topran
Quality	Aftermarket + topran parts are quality inspected at HANS PRIES GMBH & CO. KG in Germany in accordance with DIN ISO 9001:2015
Origin	Made in China

Fitment

Audi A3 8P1 (2003-2012) 2.0L 125kW | TDI

Audi A3 8P1 (2003-2012) 2.0L 103kW | TDI 16V

Audi A3 8PA (2004-2013) 2.0L 125kW | TDI

Audi A3 8PA (2004-2013) 2.0L 103kW | TDI 16V

Audi A4 B7, 8ED (2004-2008) 2.0L 103kW | TDI

Audi A4 B7, 8ED (2004-2008) 2.0L 103kW | TDI 16V

Audi A4 B7, 8EC (2004-2008) 2.0L 103kW | TDI

Audi A4 B7, 8EC (2004-2008) 2.0L 103kW | TDI 16V

Volkswagen Transporter 7JD, 7JE, 7FL, 7JL, 7FZ, 7JY, 7JZ, 7FY, 7FE, 7FD (2003-2015) 2.5L 128kW | TDI

Volkswagen Transporter 7JD, 7JE, 7FL, 7JL, 7FZ, 7JY, 7JZ, 7FY, 7FE, 7FD (2003-2015) 2.5L 96kW | TDI

Volkswagen Transporter 7EA, 7EH, 7HA, 7HH (2003-2015) 2.5L 128kW | TDI

Volkswagen Transporter 7EA, 7EH, 7HA, 7HH (2003-2015) 2.5L 96kW | TDI

Volkswagen Transporter/Caravelle 7EC, 7EB, 7EJ, 7HJ, 7HB, 7EG, 7HF, 7EF (2003-2015) 2.5L 128kW | TDI

Volkswagen Transporter/Caravelle 7EC, 7EB, 7EJ, 7HJ, 7HB, 7EG, 7HF, 7EF (2003-2015) 2.5L 96kW | TDI

Volkswagen Touareg 7L6, 7LA, 7L7 (2003-2010) 5.0L 230kW | V10 TDI

Volkswagen Touareg 7L6, 7LA, 7L7 (2003-2010) 5.0L 257kW | R50 TDI

Volkswagen Touareg 7L6, 7LA, 7L7 (2003-2010) 2.5L 128kW | R5 TDI

Volkswagen Passat 3C2 (2005-2010) 2.0L 103kW | TDI 16V

Volkswagen Passat 3C2 (2005-2010) 2.0L 125kW | TDI

Volkswagen Passat 3B6 (2000-2005) 1.9L 96kW | TDI ! Fitment Restriction: Construction Year from: 05.2001

Volkswagen LT 28-46 2DD, 2DA, 2DH (2002-2006) 2.8L 116kW | TDI

Volkswagen LT 28-46 2DF, 2DC, 2DG, 2DM, 2DL (2002-2006) 2.8L 116kW | TDI

Volkswagen Jetta 1K2 (2005-2010) 2.0L 103kW | TDI 16V

Volkswagen Jetta 1K2 (2005-2010) 2.0L 125kW | TDI

Volkswagen Jetta 1K2 (2005-2010) 2.0L 103kW | TDI

Volkswagen Golf MKV, 1K1 (2003-2010) 2.0L 103kW | TDI 16V

Volkswagen Golf MKV, 1K1 (2003-2010) 2.0L 103kW | TDI

Volkswagen Golf MKV, 1K1 (2003-2010) 2.0L 125kW | TDI

Volkswagen EOS 1F7, 1F8 (2006-2015) 2.0L 103kW | TDI

Volkswagen Bora 1J2 (1998-2005) 1.9L 110kW | TDI ! Fitment Restriction: Vehicle Identification Number (VIN) from: 1J-2-600001
