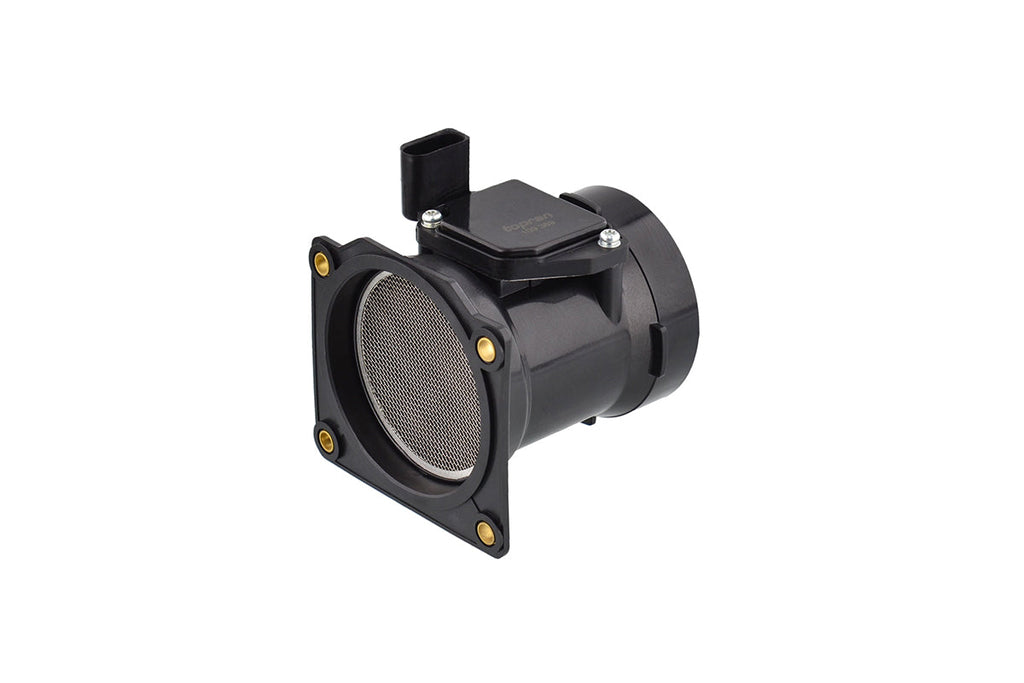

Audi VW Air Mass Sensor

Name: Audi VW Air Mass Sensor
Brand: topran
SKU: 078133471E
Price: 136.0 AUD
Availability: OutOfStock

Restock June

topranSKU: 078133471E

Price:

$136.00

Shipping:

FREE SHIPPING

Ships 1 day after restocking

Stock:

Sold Out

Will this part fit?

The air mass sensor, also known as the mass (air) flow sensor (MAF), is used to measure the intake air mass. Located in the air filter box, two temperature-dependent sensors measure the air temperature and the air flow rate. The signal is sent to the engine control unit (ECU) to calculate the correct fuel quantity required. Some common symptoms can be poor idle, complete loss of power or stalling, and the engine warning light on the instrument cluster illuminates.

Specifications

Housing Type	With housing
Number Of Plug-In Contacts	4 - pin connector
Housing Material	Plastic
Connector Shape	D Shape
Number Of Mounting Bores	4
Note	With integrated grille
Recommended Additional Repairs	Air Filter

Part Numbers

Audi, VW OE Numbers	078133471E, 078133471EX, 078133471EV
topran Number	109 389
EAN	4063926168014

Additional Information

Brand	topran
Quality	Aftermarket + topran parts are quality inspected at HANS PRIES GMBH & CO. KG in Germany in accordance with DIN ISO 9001:2015
Origin	Made in China

Fitment

Audi A4 B5, 8D5 (1995-2001) 2.4L 121kW | 2.4 ! Fitment Restriction: Construction Year from: 02.1999

Audi A4 B5, 8D5 (1995-2001) 2.4L 120kW | 2.4 ! Fitment Restriction: Construction Year from: 02.1999

Audi A4 B5, 8D5 (1995-2001) 2.4L 121kW | 2.4 quattro ! Fitment Restriction: Construction Year from: 02.1999

Audi A4 B5, 8D5 (1995-2001) 2.8L 142kW | 2.8 ! Fitment Restriction: Engine Code: AQD, APR, ALG, ACK, Construction Year from: 02.1999

Audi A4 B5, 8D5 (1995-2001) 2.8L 142kW | 2.8 quattro ! Fitment Restriction: Engine Code: AQD, APR, AMX, ALG, ACK, Construction Year from: 02.1999

Audi A4 B5, 8D2 (1995-2001) 2.4L 121kW | 2.4 ! Fitment Restriction: Construction Year from: 02.1999

Audi A4 B5, 8D2 (1995-2001) 2.4L 121kW | 2.4 quattro ! Fitment Restriction: Construction Year from: 02.1999

Audi A4 B5, 8D2 (1995-2001) 2.4L 120kW | 2.4 quattro ! Fitment Restriction: Engine Code: APZ, Construction Year from: 02.1999

Audi A4 B5, 8D2 (1995-2001) 2.8L 142kW | 2.8 ! Fitment Restriction: Engine Code: AQD, APR, AMX, ALG, ACK, Construction Year from: 02.1999

Audi A4 B5, 8D2 (1995-2001) 2.8L 142kW | 2.8 quattro ! Fitment Restriction: Engine Code: AQD, APR, AMX, ALG, ACK, Construction Year from: 02.1999

Audi A4 B6, 8E2 (2000-2004) 2.4L 125kW | 2.4

Audi A4 B6, 8E5 (2001-2004) 2.4L 120kW | 2.4

Audi A4 B6, 8E5 (2001-2004) 2.4L 125kW | 2.4

Audi A6 C5, 4B5 (1997-2005) 2.4L 121kW | 2.4

Audi A6 C5, 4B5 (1997-2005) 2.4L 121kW | 2.4 quattro

Audi A6 C5, 4B5 (1997-2005) 2.8L 142kW | 2.8 quattro

Audi A6 C5, 4B2 (1997-2005) 2.4L 125kW | 2.4

Audi A6 C5, 4B2 (1997-2005) 2.4L 121kW | 2.4

Audi A6 C5, 4B2 (1997-2005) 2.4L 121kW | 2.4 quattro

Audi A6 C5, 4B2 (1997-2005) 2.8L 142kW | 2.8

Audi A6 C5, 4B2 (1997-2005) 2.8L 142kW | 2.8 quattro

Volkswagen Passat 3B3 (2000-2005) 2.8L 142kW | 2.8 4motion

Volkswagen Passat 3B3 (2000-2005) 2.8L 140kW | 2.8

Volkswagen Passat 3B5 (1997-2000) 2.8L 142kW | V6

Volkswagen Passat 3B2 (1996-2000) 2.8L 142kW | V6
