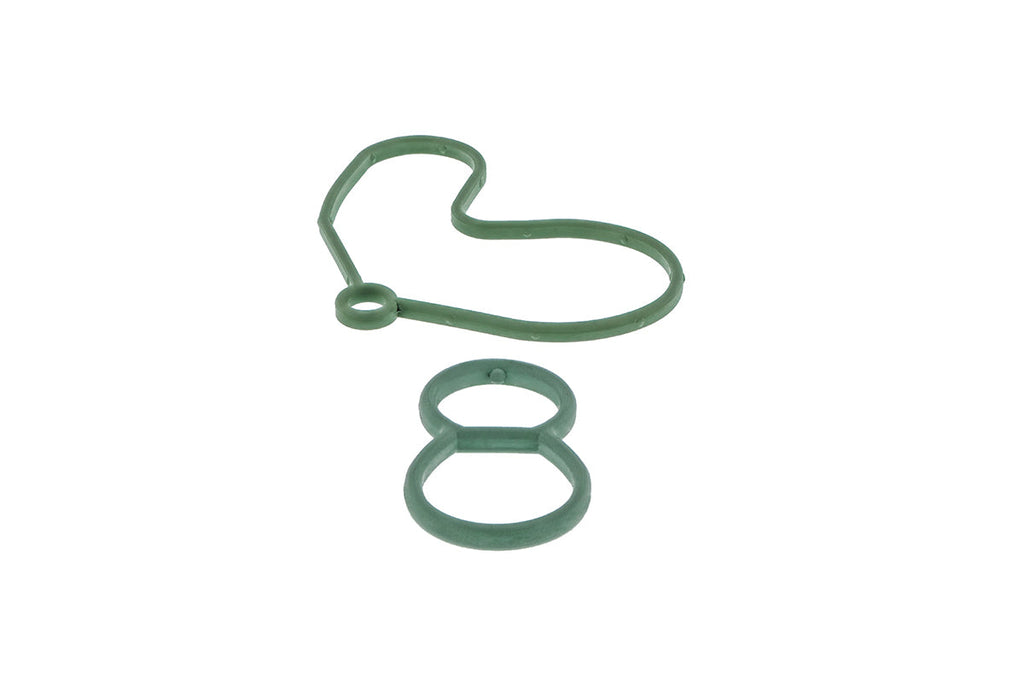

This brake vacuum pump seal kit helps keep engine oil contained around the vacuum pump assembly. Over time, the seals can become brittle, compressed, or deteriorate from repeated heat cycles, resulting in oil seepage or leaks. Replacing the seals is a cost-effective way to reseal an otherwise serviceable vacuum pump without replacing the complete unit.
This Kit Includes
Specifications
Brake Vacuum Pump Seal - 038109293
| Material |
FPM (Fluoride Rubber) |
| Fitting Position |
Upper |
| For OE No. |
1 100 630, 038 145 209A |
| Not For OE No. |
038 109 209K, 038 109 209H, 038 109 209E, 1 746 131, 038 109 209Q |
Brake Vacuum Pump Seal - 038109293A
| Material |
FPM (Fluoride Rubber) |
| Fitting Position |
Lower |
| For OE No. |
038 145 209A |
| Not For OE No. |
038 109 209K, 038 109 209E, 038 109 209H, 038 109 209Q |
Part Numbers
Brake Vacuum Pump Seal - 038109293
| VW OE Numbers |
038109293, 038198293, 1100591, XM216L006AA |
| topran Number |
115 979 |
| EAN |
4063926259293 |
Brake Vacuum Pump Seal - 038109293A
| VW OE Number |
038109293A |
| topran Number |
115 980 |
| EAN |
4063926085229 |
Additional Information
Brake Vacuum Pump Seal - 038109293
| Brand |
topran |
| Quality |
Aftermarket + topran parts are quality inspected at HANS PRIES GMBH & CO. KG in Germany in accordance with DIN ISO 9001:2015
|
| Origin |
Made in Taiwan |
Brake Vacuum Pump Seal - 038109293A
| Brand |
topran |
| Quality |
Aftermarket + topran parts are quality inspected at HANS PRIES GMBH & CO. KG in Germany in accordance with DIN ISO 9001:2015
|
| Origin |
Made in Taiwan |
Fitment
| Volkswagen Bora 1J2 (1998-2005) 1.9L 110kW | TDI ! Fitment Restriction: Vehicle Identification Number (VIN) to: 1J-3-225000
|
| Volkswagen Golf MKIV, 1J1 (1997-2005) 1.9L 74kW | TDI ! Fitment Restriction: Engine Code: AXR, ATD, Production date to: 31.07.2002
|
| Volkswagen Passat 3B6 (2000-2005) 1.9L 96kW | TDI ! Fitment Restriction: Vehicle Identification Number (VIN) to: 3B-3-268239, to 3B-3E178197
|
| Volkswagen Polo 9N (2001-2009) 1.9L 74kW | TDI |
